3CAD Next offers a set of predefined room types, containing the most common room shapes, such as:
- Rectangular
- Open room
- Indented (NSWE)
- With diagonal wall (NSWE)
To configure a standard room for a new project, do the following:
-
Enter 3CAD Next and log in.
-
Choose the appropriate shop (if your user is linked to more than one shop).
-
Click on New Project.
-
Choose a customer to assign the project to, or create one, or press Skip.
-

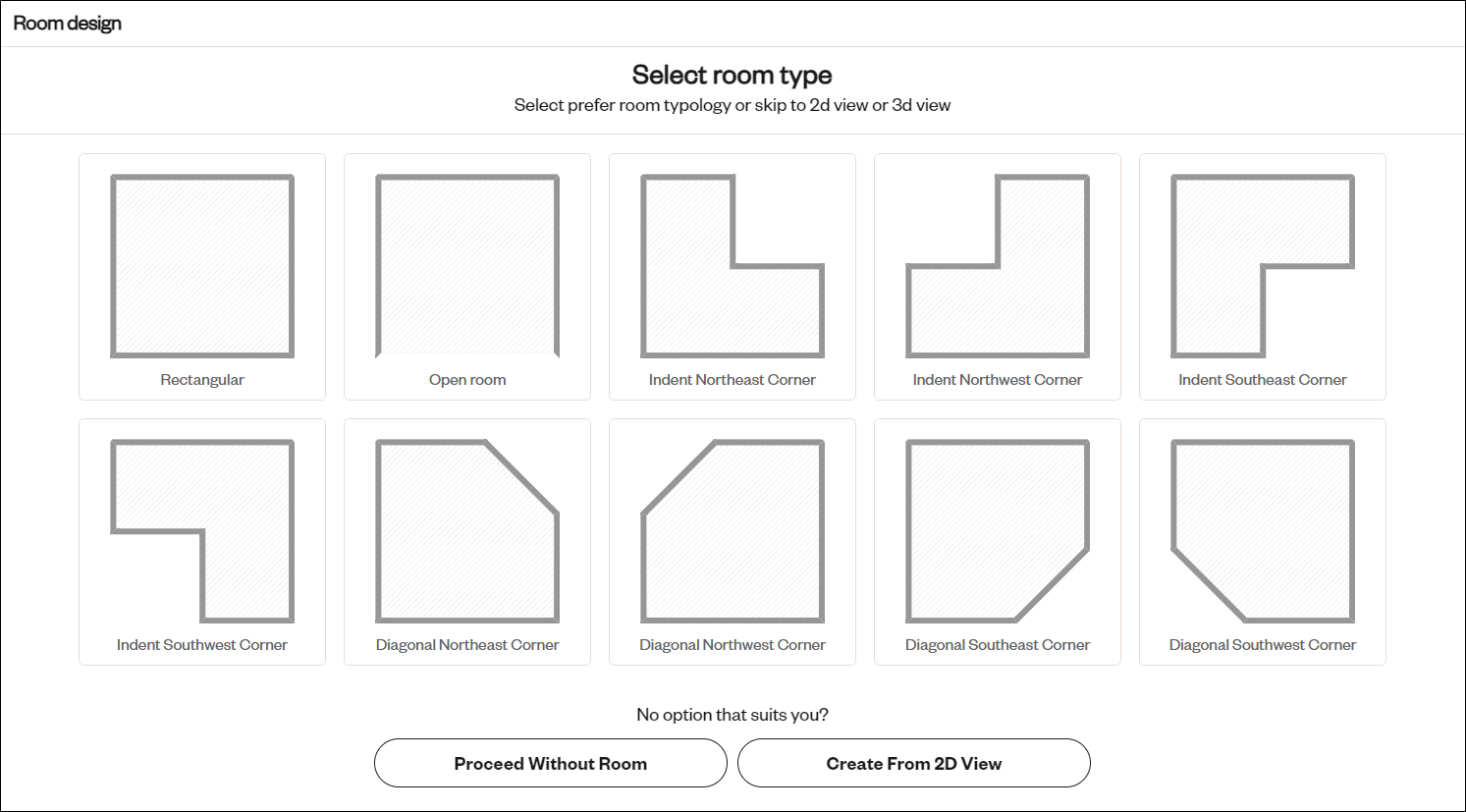

Select your preferred room shape from the room gallery, by clicking on it.
-

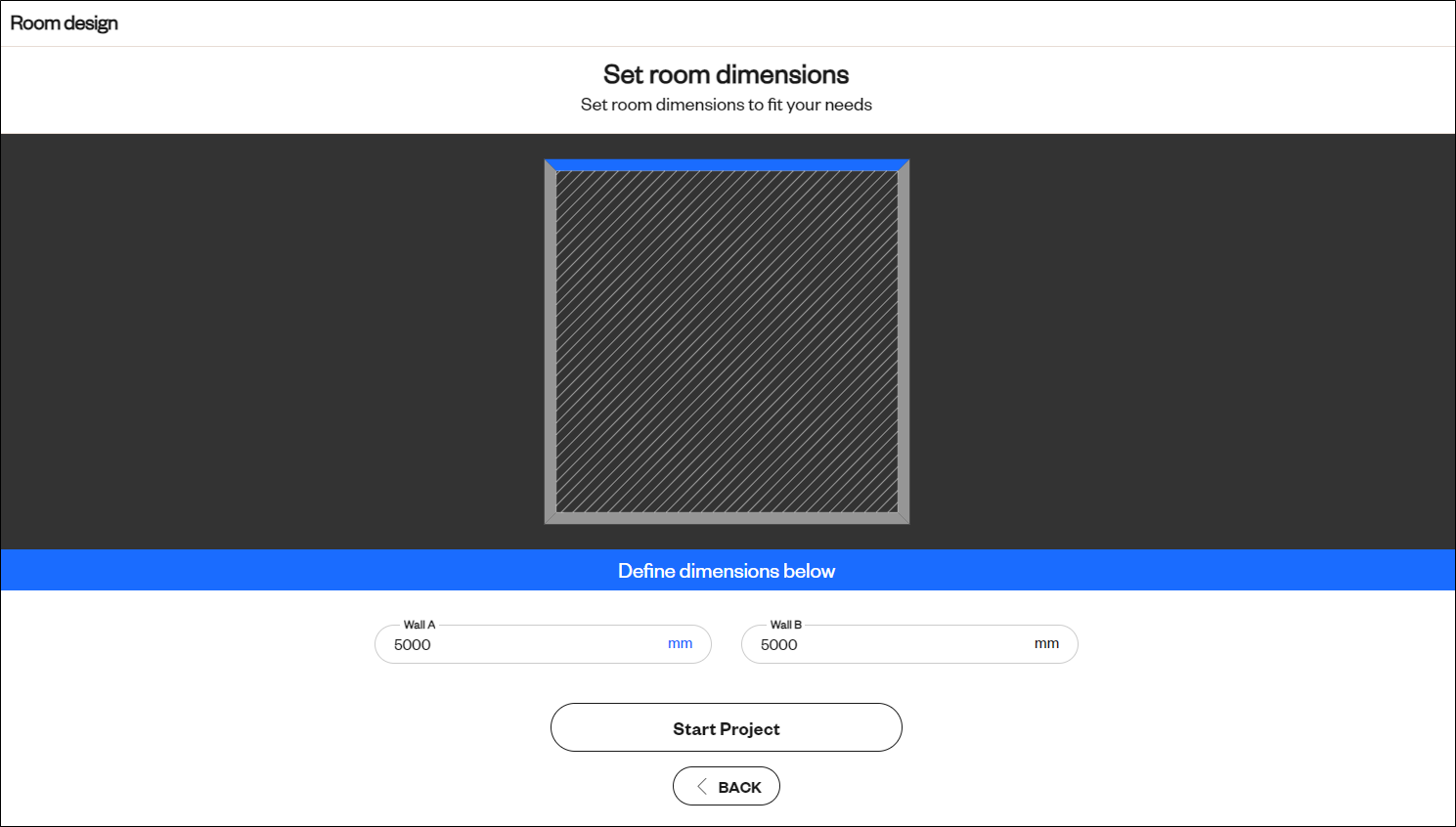

Set the walls' width.
-
Click on Start Project.
-
Select the correct catalog by clicking on it.
Note: This step does not apply if users have access to only one catalog.
-
Select the correct commercial model or technical model by clicking on it.
Note: This step may vary depending on users' front-end configuration.
-
Define the header variants, if any exist for the specific commercial or technical model selected.
Note: Header variants are variants that are preselected before starting the configuration. All the articles in the planner will have those variants as default.
-
Press the button Planner to be redirected to the 3D planner where the selected room is placed.

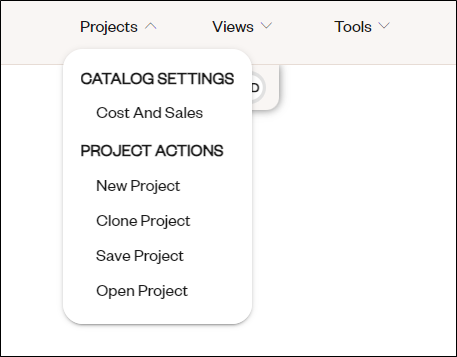

- Click on Projects in the top bar, and then Save Project to save the project.
Next step: How to configure a custom room
