The 3CAD Next planner allows you to browse the catalog and choose the articles to insert into the composition. According to the user's needs, the catalog items can be grouped based on model, typology, and dimension criteria, to ease the search process. Once found the item, you can select it, add it to the composition, and graphically displace it to the desired position in the scene. Articles can be inserted in the scene whether it is an empty environment or a room was previously created.
To insert articles to the scene, take the following steps:
-
Open your project in the 3CAD Next planner.
Note: Articles can be added both from the 3D and 2D views, so select either one from the menu bar according to your needs.
-

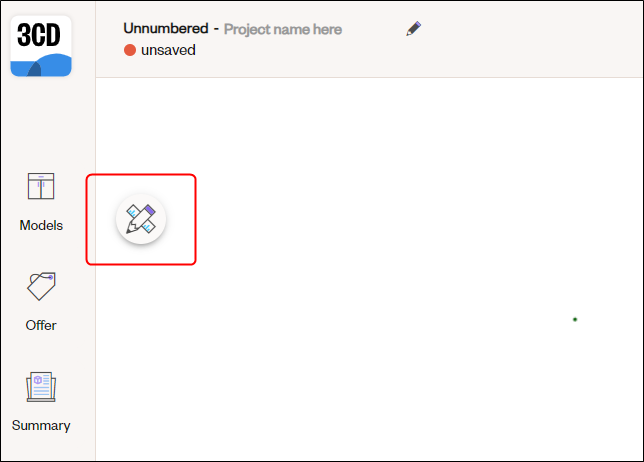

Click on the Configure button on the left-hand side of the window to open the Library.

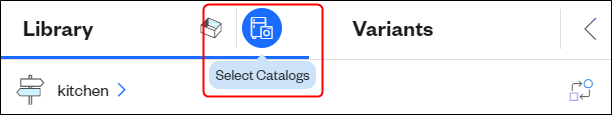

Note: If adding articles in the 2D view, click on the Select Catalogs button.
-
Browse the article classifications and subclassifications on the left to find the article you are looking for. The search bar can be used to simplify the search within the selected classification or subclassification.
-

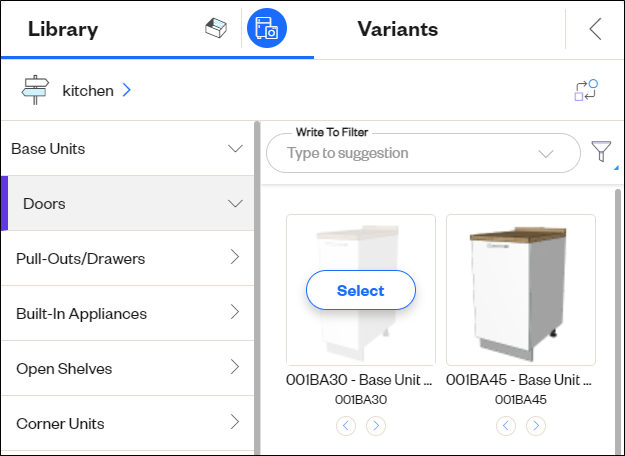

When you identify the article to insert, roll over it and the Select button appears in the overlay. Click on it and the article is added to the planner.
Note: If the article is a unit with a door, by clicking on Select, the article is inserted in the planner having its door opening on the default side (defined in LayEdit). Alternatively, you can click on the right or left arrow under the article's picture to insert it with a specific door opening (respectively right or left).
-
To position it correctly in the scene, you need to do the following depending on whether you want to position it from the 2D or 3D view.
In the 2D view:
-
click and hold on the article in the planner while dragging it to the correct position. It is also possible to rotate it by clicking and holding on the circular arrow on the article.
Note: The tools Magic links and Element Snap allow a more fine-tuned positioning. They are enabled by default.
In the 3D view:
-
click on the 3D rotation button in the toolbar.
-
click and hold on the article in the planner while dragging it to the correct position.
Note: The tools Magic links and Element Snap allow a more fine-tuned positioning. They are enabled by default.
-
click and hold on the article in the planner while dragging it to the correct position. It is also possible to rotate it by clicking and holding on the circular arrow on the article.
- Save by clicking on Projects, then Save Project in the top bar.
To configure the article's variants, see the How to configure articles' variants article.
Next step: Removing an article from the configuration
