3CAD Next allows you to customize room flooring in the planner after it has been created or inserted. You can adjust the floor shape, define variants such as material or finish, or remove the floor entirely.
|
Important!
|
Prerequisite: A floor must already be present in the room. To create one, see Insert flooring in the planner.
Adjust the flooring shape
- Select the flooring.

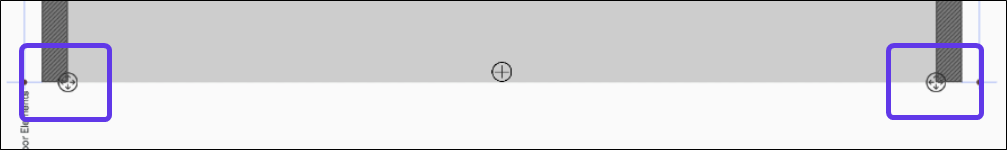

- Click one of the anchor points (circular handles at each corner of the floor).
- Drag the anchor to adjust the shape.
- Release the mouse button to apply the change.

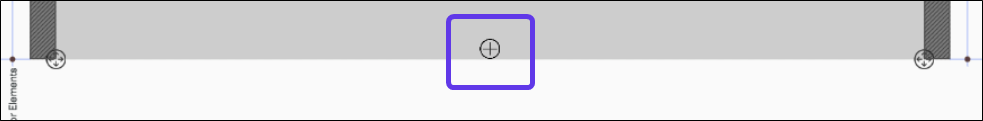

- To refine the shape, click a + icon along the perimeter to add new anchor points.
- Continue adjusting anchors as required.
- Click Projects, then Save Project.
Note: If a floor has been created in relation to a wall and that wall is moved, the floor will automatically follow the wall's movement. If, however, the floor’s shape is independent of the wall, each element must be adjusted separately.
Set the floor variants
All room-building items, including flooring, have been enriched with a variety of options in their Variant sections, enabling users to fine-tune their appearance and achieve a more realistic representation.
Floor variants encompass all settings available for customizing each flooring type. They may provide an extensive range of customization options, including material, color, and surface slope.
Each flooring type includes a specific set of variants determined by its characteristics. For example, a step-up floor includes a “thickness” variant, whereas a standard floor does not.

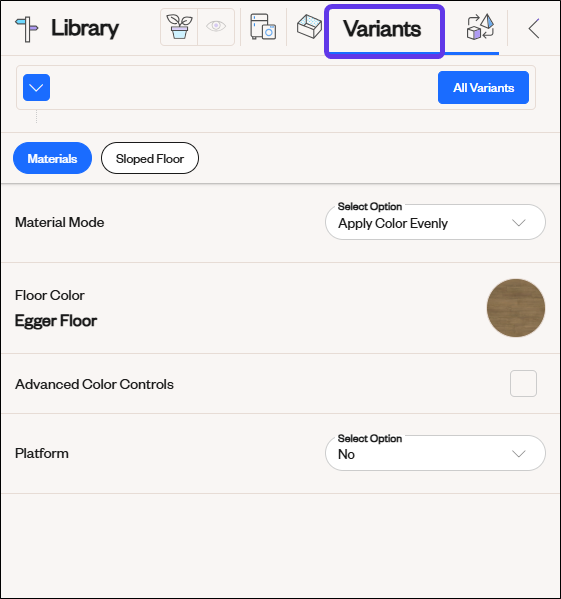

How do I set flooring variants?
- Select the flooring.
- Click the Catalog button to open the Library.
- Click Variants.
- Select the required variant values (for example, material or finish).
- Click Projects, then Save Project.
Note: This action is available in both 2D and 3D views.
Delete the floor
- Select the flooring.
- Press
Deleteon your keyboard.
- Click Projects, then Save Project.
