In 3CAD Next, users can open previously saved projects, choosing them from the Project List. Filters may be applied to simplify the search. Once the project has been identified, it can be loaded to view or modify it in the planner.
To load an existing project do the following:
-
Access 3CAD Next in the correct environment, at the link provided, for example, "mycompany.3cad.it".
-
Login to 3CAD Next.
-
Click on Load project to access the Project list.

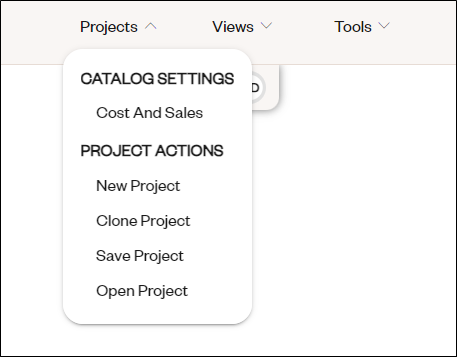

Note: Alternatively, it is possible to access the Project archive from the planner by clicking on Projects, and then Open Project in the upper bar. -

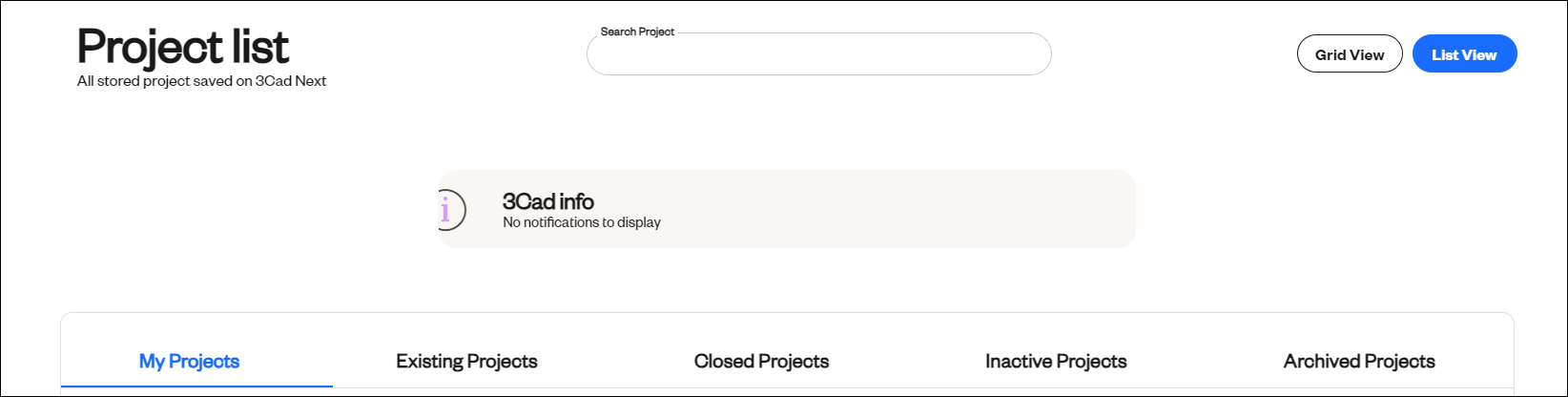

Select the correct list's tab among:
- My Projects: projects you saved
- Existing Projects: projects saved by others, to which you have been granted access
- Closed Projects
- Inactive Projects
- Archived Projects
-

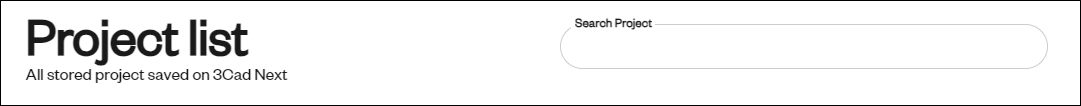

If useful, filter projects from the search bar, alternatively by:
- ID
- Description (project title)
- Shop
- Status
Note: It is possible to switch the view from list to icons by clicking on Grid View or List View alternatively. -

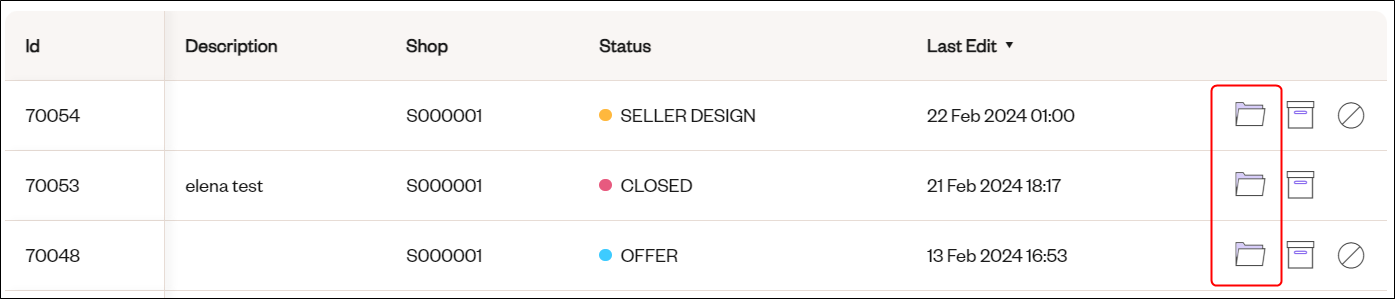

Click on the open folder button related to the project you want to open, so to load it in the planner.
-
The project is now loaded in the planner where you can view it or apply further modifications.
-
To save any change made to the configuration, click on Projects, and then Save Project in the upper bar.
Next step: What does the 3CAD Next planner look like?
