Using the divider component for boxes and cabinets

In 3CAD Next, the Divider component creates clear separations within a box or cabinet in the planner. Use dividers to split a space into distinct functional areas, such as different product sections. They are quick to insert, easy to adjust, and essential for creating customized spaces.

This article covers dividers for boxes and cabinets. For dividers on windows and French doors, see Using dividers for windows and French doors

.

What the Divider component is

The Divider is a 3CAD Next component that splits a box into sections. A divider does not remove or duplicate the box itself. It introduces an internal split that you define manually, horizontally or vertically.

What you can do with dividers

• Create one or more separations within a box
• Divide a space horizontally or vertically, depending on design needs
• Adjust the divider position with full precision, according to the project's specifics
• Maintain the box's dimensions while segmenting the interior space

Practical uses

• Splitting a wardrobe box into multiple compartments
• Creating shelves within a storage unit
• Defining separate functional areas inside a single structure

How to open the Divider maker

1. Open the planner in 3CAD Next.

2. Add the box you want to divide to the scene.
   Note: Dividers must be enabled and set in the configuration rule (LayEdit). If not, the divider options and buttons do not appear in the configurator.

3. Select the box.

4. Open the Variants menu.

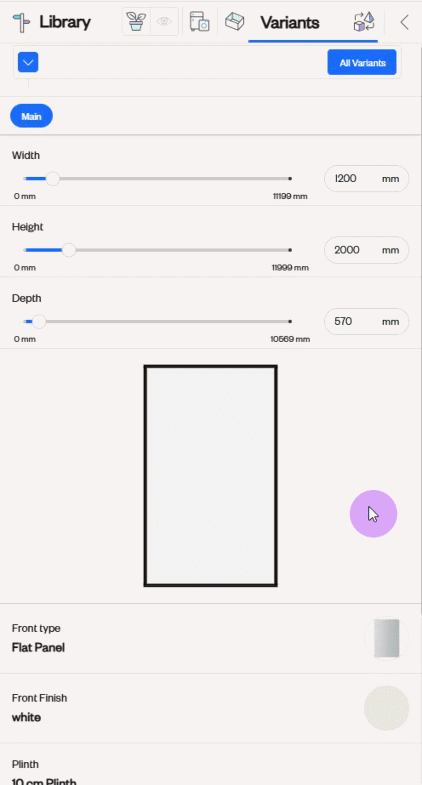

5. Click the box image in the menu to open the mask with the divider's options (variants). The available options differ based on the design.



6. Open the Divider maker interface using any of these methods:

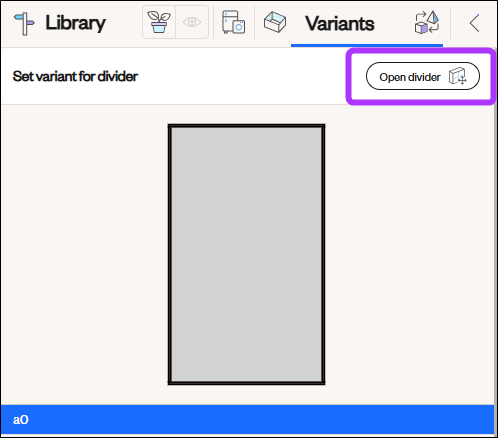

   • Click Open Divider in the divider mask.



   • In 3D, click Tools in the top bar > Functionality > Open Divider



   • In 2D, click the Divider icon in the toolbar. See here for more details.

How to create divisions in the Divider maker

You can create divisions in two ways: by dragging dividers into position, or by splitting the area into equal sections.

1. Create the divisions using one of these methods:
   • Drag dividers manually.
     In the Divider maker, click Create Divisions and drag a divider into position. Move the cursor horizontally or vertically to set its direction. Repeat to add more dividers.


   • Split the area into equal sections.
     Use this method when you need sections of the same size. In the Divider maker, click the area inside the element. The Split Area section appears. Enter the number of Horizontal and Vertical sections you need, then click Split. The preview in the Divider maker updates to show the dividers.

     Example
     To divide an element into 2 identical vertical sections, enter 1 in Horizontal and 2 in Vertical, then click Split.


2. Click Apply to confirm. The element is now split into two or more sections.

How to change the divider options (variants)

Single-click the box image in the Variants menu to open the mask with the divider's variants. The available variants depend on the design and are configured in the LayEdit rule. Examples include front type, handle type, color, material, and integrated elements.

How to position a divider precisely

Open the Divider maker, then use either method:

• Method A (visual): Click Move Divisions and drag the divider.





• Method B (exact values): Click the divider. The Edit Division section appears on the left. Enter the Left/top distance, the Right/bottom distance, or a Percentage.



How to delete a divider

1. Open the Divider maker.

2. Select the division you want to remove. The Edit Division section appears.

3. Click Delete on the left side of the interface.
